MANNED SYSTEMS

S351 MANNED SUBMERSIBLE

Manned Underwater Vehicles

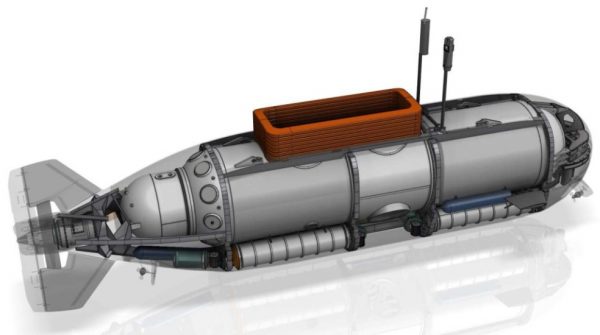

The (S351) NEMESIS Dry Combatant Submersible (DCS) is a swimmer lockout submersible capable of operating independently or from a host ship. Designed to answer the need for a long-range dry combat submersible, Nemesis incorporates many design innovations that improve overall capability, enhance vehicle and swimmers’ operational effectiveness. The submersible has three watertight sections; a forward compartment which is the transport compartment that houses up to eight swimmers or other payloads, an amidships swimmer lock-in/lock-out compartment, and an aft compartment that serves as the Pilot/Navigator operating station with a mature Command System. Nemesis’ innovative submersible design demonstrates MSubs ability to anticipate and rapidly respond to customer requirements.

S351 / Specifications

Length 12 m
Beam 2.2 m
Height 2.5 m
Weight 28 tonne
Operating Depth >100 m
Crew 2 (pilot and co-pilot)
Range 66 nautical miles at 5 knots (submerged, standard battery)
Payload 8 fully equipped swimmers or 1.1 tonne
Transported ISO Containers
