Uncrewed Underwater Vehicles

MSubs’ Uncrewed Vehicles are designed to be affordable and easy to operate and maintain. Our UUV hull designs are based on our crewed submersibles, enabling most systems and components to be within the pressure hull. This enables MSubs UUV’s to be maintained and replenished without recovery, reducing turnaround time. Additionally, by utilising Submergence Group’s SUBNAVSYS integrated bridge system, MSubs’ larger UUVs can be operated either crewed or uncrewed.

MSubs is also the distributer of Martac Mantas hybrid and surface ASV’s. The range spans from the lightweight and readily portable to extreme-performance, large-payload, ocean-going vessels.

Contact

Affordable

Cost-effective designs without compromising capability.

Intuitive

User-friendly systems for simple operation and control.

Reliable

Built for endurance and performance you can trust.

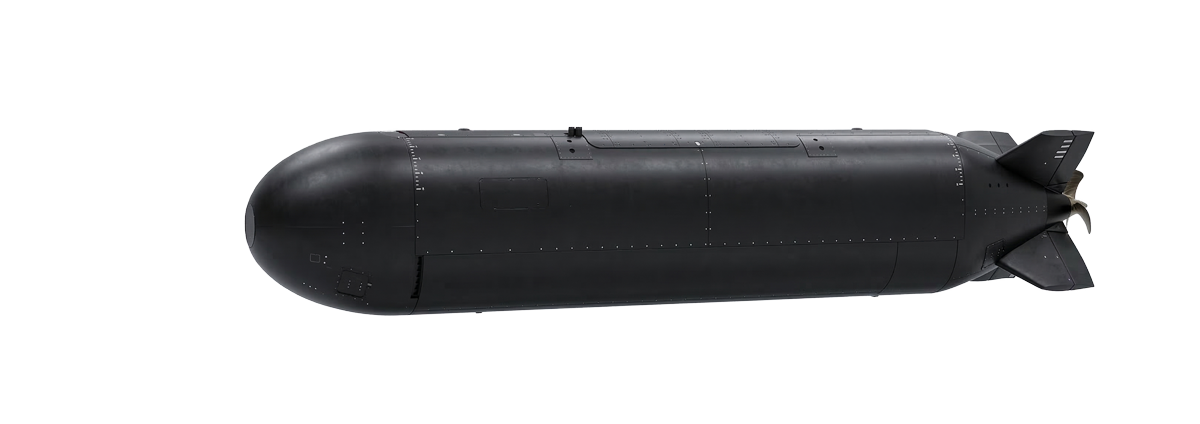

Vessel:XV EXCALIBUR12 m
2.2 m
25,000 kgXV Excalibur is the Royal Navy’s first Extra-Large Uncrewed Underwater Vehicle (XLUUV), developed by MSubs under Project CETUS. The battery-powered submarine is a testbed for autonomous operations, advanced sensors and modular payloads, supporting development in anti-submarine warfare, ISR, seabed operations and integration with crewed vessels.Length:
Beam:
Weight:

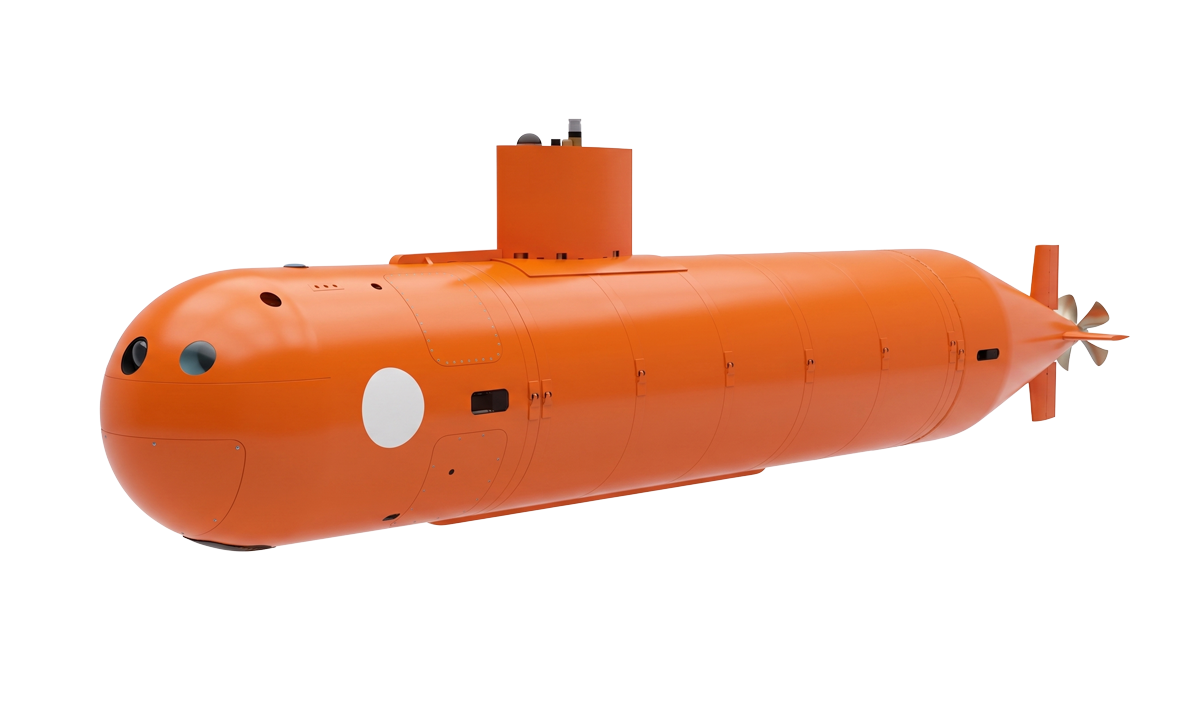

Vessel:MASTT23 m
2.2 m
70,100 kg
100 m
Lead acid batteries
58 nm at max speed (8.5 knots)
3 knots (max 8.5 knots)
Submerged: UW Modem and Umbilical,
Surfaced: RF and WiFi
Vehicle transportation 3 x 40’ ISO containersThe Mobile Anti-Submarine Training Target (MASTT) Unmanned Underwater Vehicle (UUV) was built in response to the US Navy’s request for a rapid prototype, low cost UUV for Anti-Submarine Warfare (ASW) training. It also provides an optimum platform for conducting threat detection analysis training as well as countermeasure and torpedo system testing. The MASTT UUV is towed to the operation area and then released to execute the required mission profiles in support of tactical training evolutions.Length:
Beam:
Weight:
Operating Depth:
Power:
Submerged Duration:
Cruising speed submerged:
Vehicle communications:

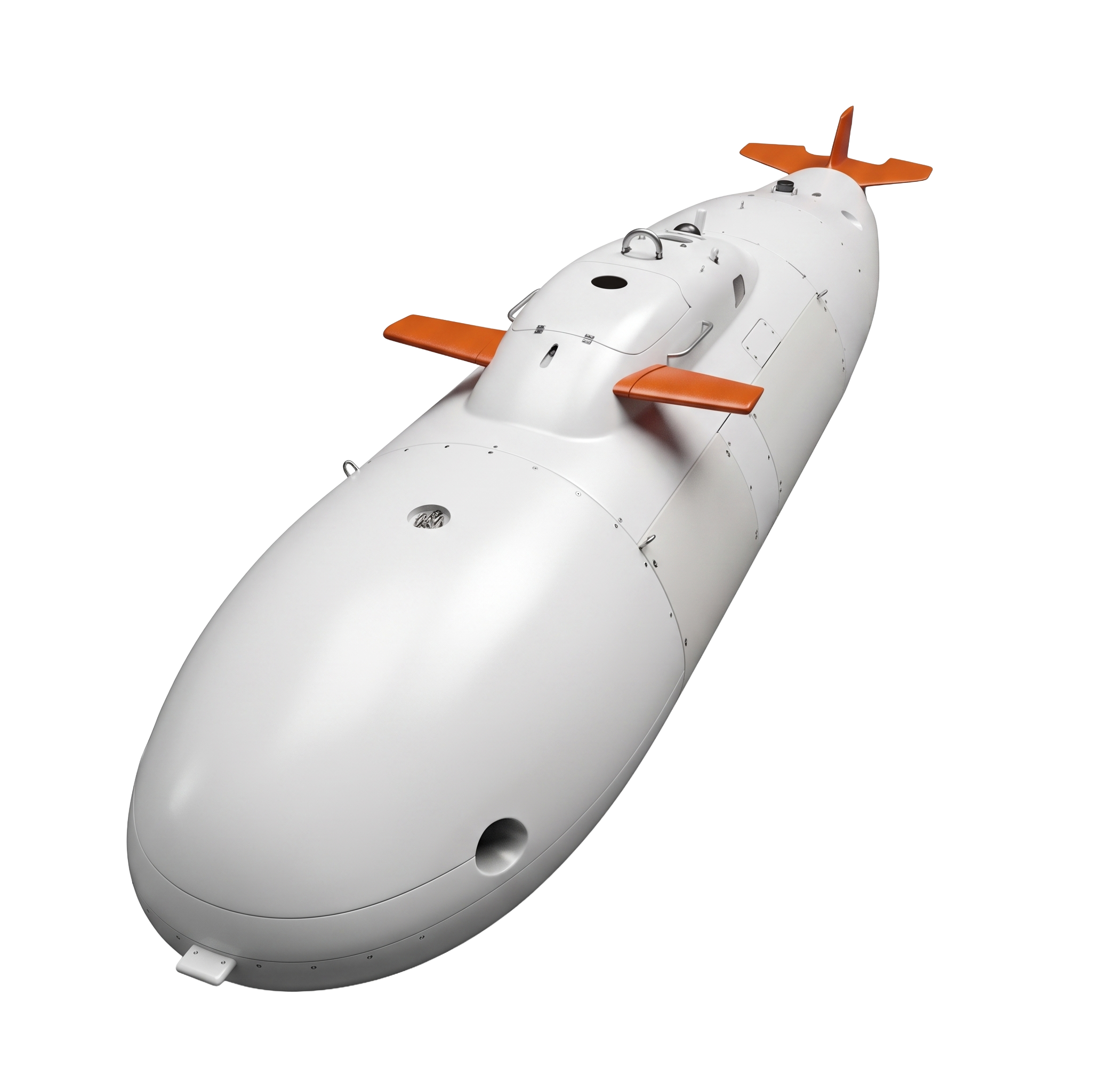

Vessel:S2018.8 m
1.64 m
8,900 kg
305 m
48 hours
12 knotsS201 is an 8.9 tonne vehicle intended for 48hr operation at depths up to 305m. This project is an example of our rapid prototyping capabilities. From outline specification to launch took just 14 months. Dived performance is maximised by attention to streamlining of the outer hull and by the use of advanced motor technology to directly drive the main propeller.Length:
Beam:
Weight:
Operating Depth:
Submerged Duration:
Cruising speed submerged:

Contact us

Whether you’d like to discuss a manned or unmanned underwater vehicle, specialist engineering services, operational support or a potential partnership, our experienced team is ready to help. Contact MSubs today to discuss your requirements and discover how we can support your project.
